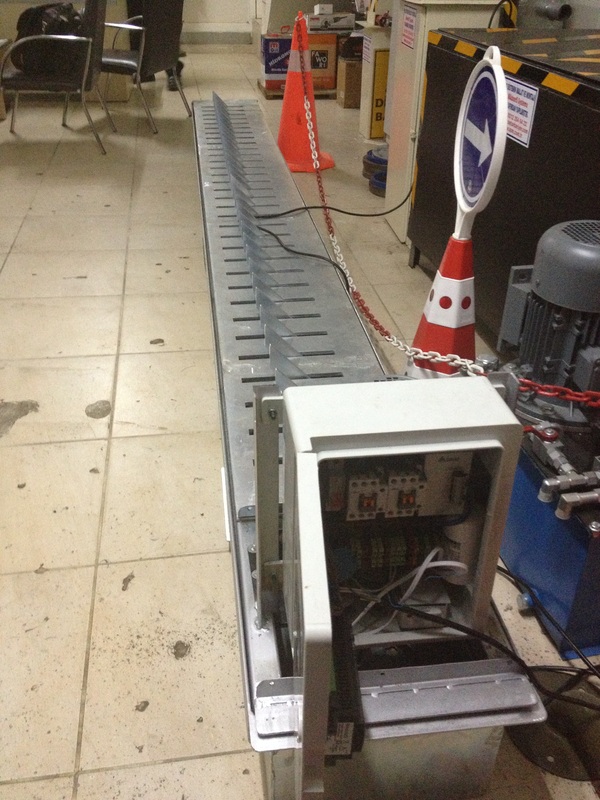

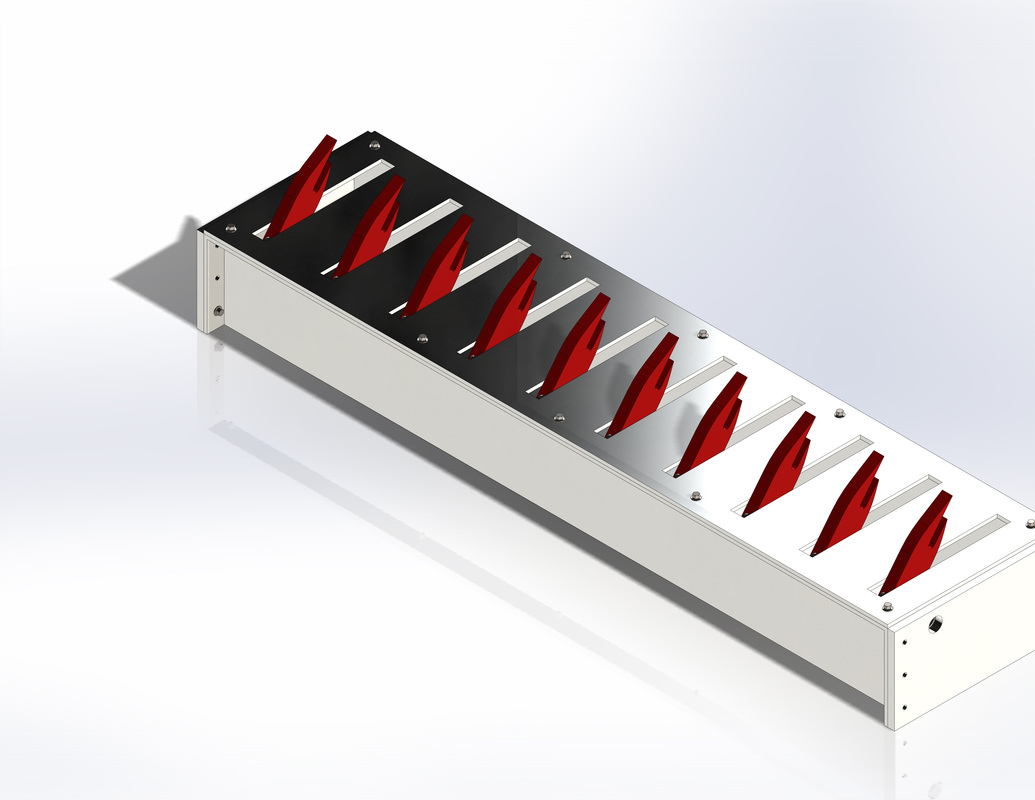

Spike barrier system is a barrier system designed with the purpose of preventing forbidden and unauthorized vehicle access at gates and security areas. The spikes are made of steel by means of laser cutting machines, heat-treated spikes are very hard and very sharp. Complete body is also made of steel and manufactured as one piece in plasma cutting machines. Single piece body is not affected by summer and winter conditions and provides the advantage of being flexible.
There are 2 types in terms of their use;
1- Surface-mounted type
2- Underground mounted type
In terms of the operation type
1- Electro-mechanical type (automatic)
2- Hydraulic (automatic)
3- Manual (with foot pedal)
They are manufactured as galvanized.
Technical Specifications
|
|
|
|
| Dimensions |
300x300x1000mm |
|
| Tooth Angle (max) |
50o |
|
|
| Operating Voltage |
220VAC} 10% |
|
| Reverse Voltage Protection Feature |
Yes |
|
|
| Average Power |
150 W |
|
|
| Operating Temperature |
-20 ° c/+ 50 ° c |
|
| Button Type |
3, button (Open/Close/Stop) |
| Warning Elements |
Traffic Lamp, Flaşor Lamp |
| Security Products |
Photocell, Lab Detector System, RFID, System, Fingerprint/Password Device |
| Programme Security |
100 years |
|
|
| Error Prevention |
Power-On-Reset |
|
| Bug Tracking Feature |
Yes |
|
|
| Limit Switch Type |
Inductive |
|
|
| Stop Feature |
Yes |
|
|
| Auto Power Off Feature |
Yes |
|
|
| Low Power Warning Feature |
Yes |
|
|
| Over-current Protection |
Yes |
|
|
| Motor Protection |
Real time clock with |
| Opening/Closing Time |
2-10 sec |
|
|
| |
|
|
|
